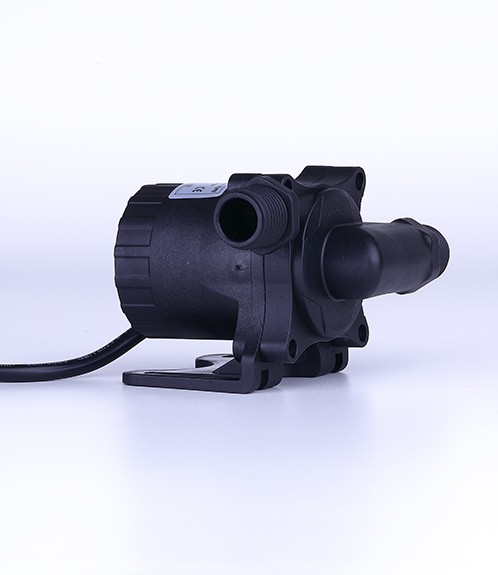

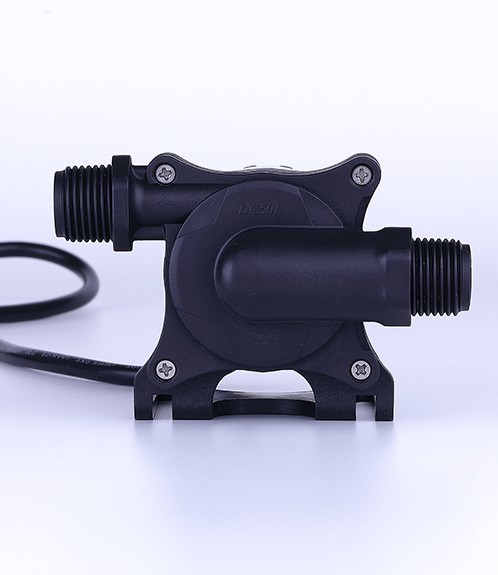

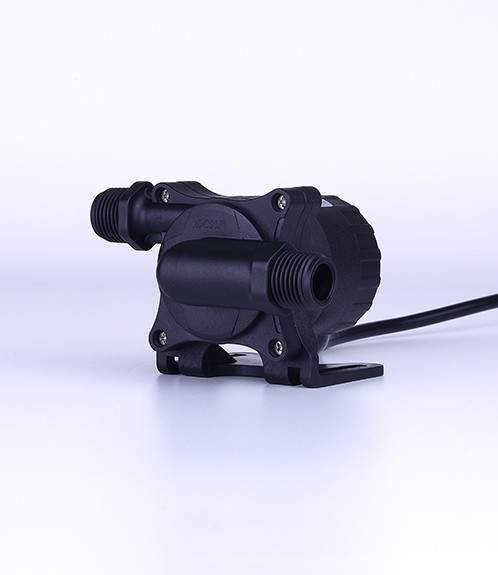

DC50F Multi-Function Mini Aquarium Pond Fountain Garden Water Pump-dc pump/submersible pump/water pump/Aquarium pump

图片关键词

Specifications

NO.	Item	Specs
1	Dimension and weight	109mmx91mmx71.5mm;480g
2	External diameter of outlet	1/2" thread(M20)
3	External diameter of inlet	1/2" thread(M20)
4	Driving mechanism	Brush-less, magnetic isolated design
5	Material of pump shell	ABS,PES/SPS/PPS/PA66+30%GF (Optional)
6	Condition of use	Can continuously work, submersible or land use (not self-priming)
7	Suitable medium	Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid)
8	Max working temperature	60ºC(for T sub-series) or 100ºC(for S/A sub-series)
9	Power consumption	2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)
10	Rated voltage	12Vdc or 24Vdc
11	Working voltage range	5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
12	Max load current	2.0A (for T sub-series) or 4.5A(for S/A sub-series)

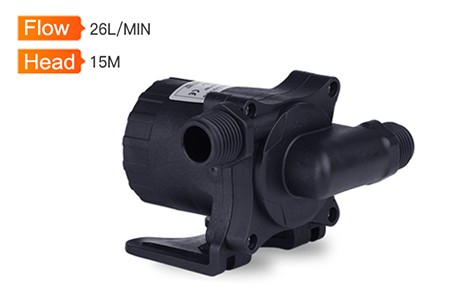

13	Max horizontal flow rate	18L/MIN(for T sub-series) or 26L/MIN(for S/A sub-series)
14	Max static lift	8M(for T sub-series) or 15M(for S/A sub-series)
15	Noise class	<40dB
16	Waterproof class	IP68(suitable for submersible installation)
17	Life span	>30,000hrsIP68(suitable for submersible installation)
18	Power supply	Suitable solar panel, batteries, adapter or other power source
19	Protection function	Dry-run protection, lock protection(customized function)
20	Power regulation function	Speed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)
22	Feature	small size with high efficiency,maintenance-free Use ceramics shaft and carbon fiber sleeve Completely water proof (IP68) Brush-less dc control without pollution, long life span OEM and ODM service accept Offer Pump related control system design

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No.	Voltage	Max load current	Max static lift	Max flow rate	Power consumption
	V(dc)	A	M	L/H	w
DC50F-1250T	12	2.0	5.0	900	24
DC50F-1250S
DC50F-1250A
DC50F-12110S	12	4.5	11	1320	54
DC50F-12110A
DC50F-2480T	24	2.0	8.0	1080	48
DC50F-2480S
DC50F-2480A
DC50F-24150S	24	3.60	15	1560	86.4
DC50F-24150A
NOTE	Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids. When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current). The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head. The max flow rate means flow rate with no lifting height(according to the curve bellow)

Difference between 2phase & 3phase brushless DC pump

2phase
(T sub-series)

Hall sensor driving, circuit board should be placed inside pump body

3phase
(S/A sub-series)

NOTE that 3phase dc is completely different with 3phase AC; 3phase DC means 3 pairs of magnetic polarity & sensor-less, power supply the same with common DC pump
Intelligent program-driving, sensor-less, circuit outside of pump body (main factor that pump can be high-temperature resistant)
Speed adjustable by PWM, 0~5V signal or potentiometer(optional)
Lock protection,reverse-connected protection, over-vol.&over-current protection,
Soft start, no current impact, can be contact directly with solar panel
