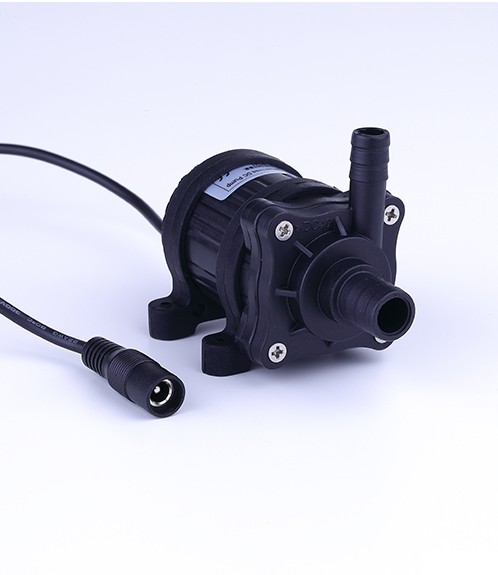

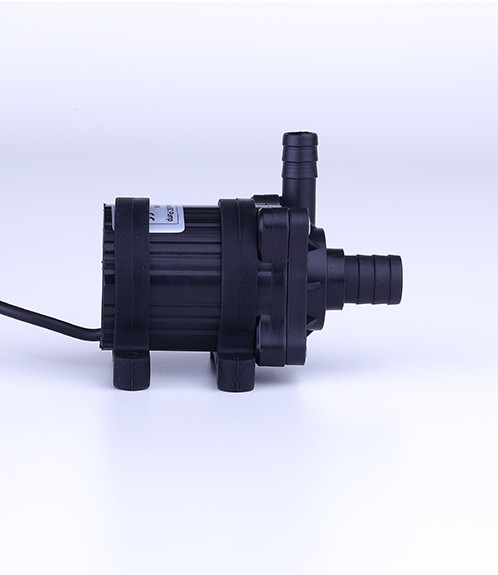

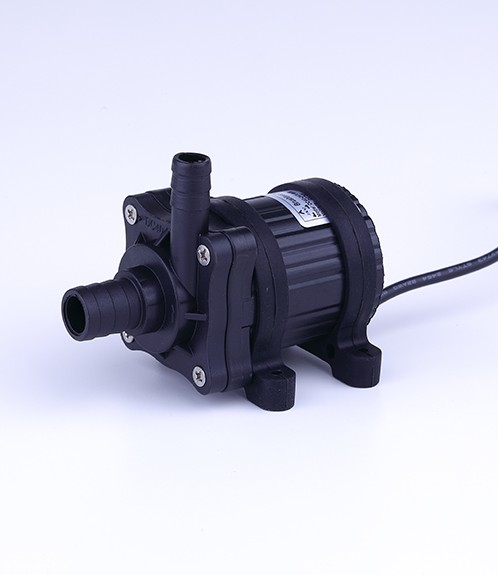

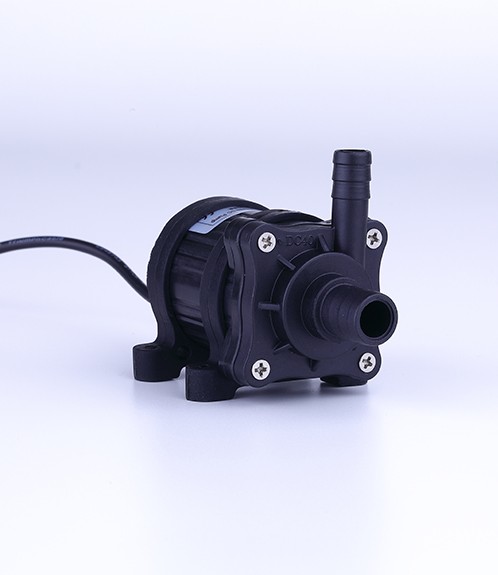

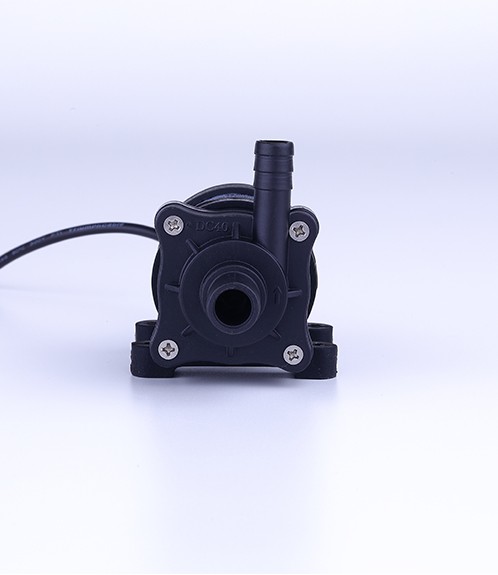

Hot Water Circulation Solar Pump-dc pump/submersible pump/water pump/Aquarium pump

图片关键词

Specifications

NO.	Item	Specs
1	Dimension and weight	84.5mmx61.8mmx43.8mm;220g
2	Installation dimension	84.5mmx65mmx56mm;
3	External diameter of outlet	10mm
4	External diameter of inlet	14mm
5	Driving mechanism	Brush-less, magnetic isolated design
6	Material of pump shell	ABS,PES/SPS/PPS/PA66+30%GF (Optional)
7	Condition of use	Can continuously work, submersible or land use (not self-priming)
8	Suitable medium	Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid)
9	Max working temperature	60ºC
10	Power consumption	2.5W~28.8W(can be customized within this range)
11	Rated voltage	12Vdc or 24Vdc
12	Working voltage range	5Vdc ~ 12Vdc (Max 14V )or 5Vdc ~ 24Vdc(Max 26V)
13	Max load current	1.2A

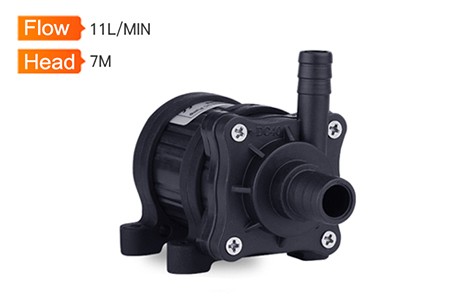

14	Max horizontal flow rate	11L/MIN
15	Max static lift	7M
16	Noise class	<40dB
17	Waterproof class	IP68(suitable for submersible installation)
18	Life span	> 30,000hrs
19	Power supply	Suitable for solar panel, batteries, adapter or other power source
20	Protection function	dry-run protection, stuck protection(customized function)
21	Power regulation function	Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)
22	Feature	small size with high efficiency,maintenance-free Use ceramics shaft and carbon fiber sleeve Completely water proof (IP68) Brush-less dc control without pollution, long life span OEM and ODM service accept Offer Pump related control system design
